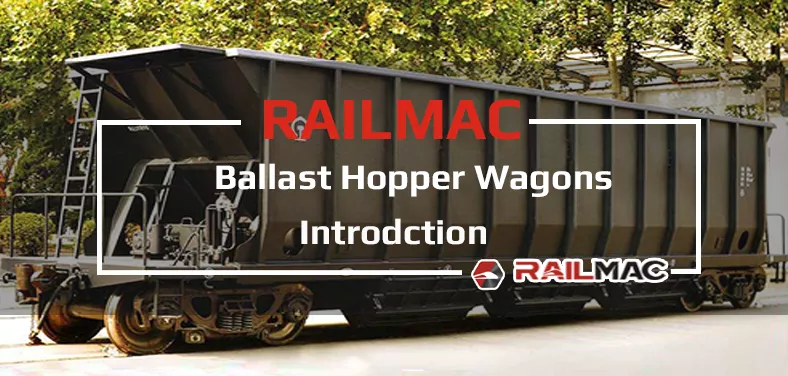

RailMac Ballast Hopper Wagons
The ballast hopper is a type of open-top freight hopper wagon. Its main function is to lay ballast when building new railways or overhauling current railways. It can also be used as a general wagon to transport bulk materials.
RailMac supplies three types of ballast hoppers that have proven their quality and reliability on the railway lines in China.
The lineup primarily includes three models: K13NK60T, KZ8080T, and KZ7070T. These models provide comprehensive solutions ranging from routine maintenance to heavy-duty transportation, covering load capacities from 60 to 80 tons.
Advantages of Rail Ballast Hopper Wagons Series
- Supports simultaneous ballast spreading at low speeds of 3-5 km/h for efficient, continuous operation.
- The discharge trajectory is specially engineered to never encroach on railway structure limits, ensuring operational and equipment safety.
- The body and critical components are constructed from high-strength wear-resistant steel with special reinforcement, offering impact resistance, wear resistance, and extended service life.
| K13NK 60T 4-Axle60 t | ||||||||
| KZ70 70T 4-Axle70 t | ||||||||
| KZ80 80T 4-Axle80 t | ||||||||
Model Capacity/t | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
Trains Model | Loading Capacity | Axle Load | Trains Model | Loading Capacity | Axle Load | ||
| K13NK 60T 4-Axle | 60 t | 21 t/axle | KZ70 70T 4-Axle | 70 t | 23 t/axle | ||
| KZ80 80T 4-Axle | 80 t | 27 t/axle | |||||
| ——END—— | |||||||
RailMac Ballast Hopper Wagons Series
This is the list of all series of RailMac Ballast Hopper Wagons.
Click here to find ballast hopper wagons by type
K13NK 60T 4-Axle
Loading Capacity: 60 t
Gauge: 1435 mm
Axle Load: 21 t/axle
Max Speed (Full Load): 120 km/h
Loading Volume: 36 m³
KZ70 70T 4-Axle
Loading Capacity: 70 t
Gauge: 1435 mm
Axle Load: 23 t/axle
Max Speed (Full Load): 120 km/h
Loading Volume: 42 m³
KZ80 80T 4-Axle
Loading Capacity: 80 t
Gauge: 1435 mm
Axle Load: 27 t/axle
Max Speed (Full Load): 120 km/h
Loading Volume: 48 m³
