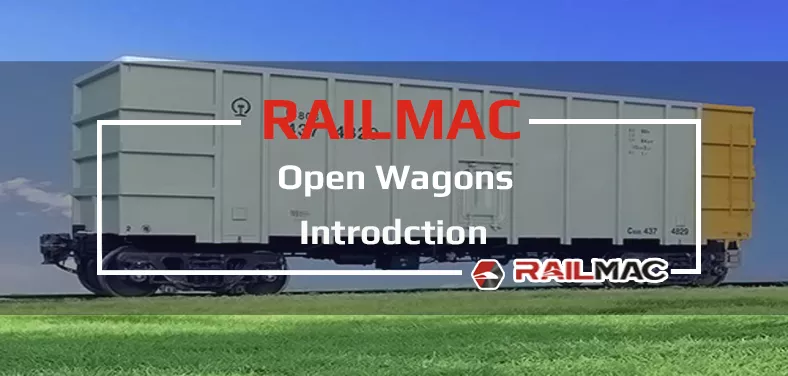

RailMac Open Wagons
Open top wagons, also called Gondola cars in North America, are one of the most commonly seen types of railway freight wagons. The wagon’s body shape is mostly a cuboid box without the top cover. The side plates of the wagon body have side doors that can be opened to facilitate the unloading of goods.
Open wagons are mainly used to transport coal, ore, mineral materials, wood, steel, and other bulk goods, and can also be used to transport mechanical equipment. With the help of tarpaulin or other awnings, they can replace boxcars to carry goods that need protection against rain or sunlight. Open wagons have great versatility and composite the most part of railway freight trains.All models in the series focus on structural strengthening and material innovation, generally using weathering steel and special steel, significantly enhancing corrosion resistance and service life.
Advantages of Rail Open Wagons
- The open structure accommodates various mechanized loading/unloading methods such as dumpers and grabs, ensuring high handling efficiency.
- Widespread use of weathering steel and stainless steel reinforces critical components, delivering superior impact resistance and corrosion resistance.
- From the C64K to the C80E, load capacity progressively increases from 60 tons to 80 tons, meeting heavy-duty transportation demands.
Trains Model |
Loading Capacity |
Axle Load |
Trains Model |
Loading Capacity |
Axle Load |
||
| C64K 4-Axle Standard Gauge Bogie Wagon | 61 t | 21 t/axle | C70 4-Axle General-Purpose Open Wagon | 70 t | 23 t/axle | ||
| C70E 4-Axle Open Goods Wagon | 70 t | 23 t/axle | C80B 4-Axle Open Wagon Specialized for Coal | 80 t | 27 t/axle | ||
| C80E 4-Axle General Open Wagon | 80 t | 27 t/axle | |||||
| ——END—— | |||||||
RailMac Open Wagons Series
This is the list of all series of RailMac Open Wagons.
Click here to find open wagons by type
C64K 4-Axle Standard Gauge Bogie Wagon
Loading Capacity: 61 t
Gauge:1435 mm
Axle Load: 21 t/axle
Max Speed (Full Load): 120 km/h
Loading Volume: 73.3 m³
C70 4-Axle General-Purpose Open Wagon
Loading Capacity: 70 t
Gauge:1435 mm
Axle Load: 23 t/axle
Max Speed (Full Load): 120 km/h
Loading Volume: 77 m³
C70E 4-Axle Open Goods Wagon
Loading Capacity: 70 t
Gauge: 1435 mm
Axle Load: 23 t/axle
Max Speed (Full Load): 120 km/h
Loading Volume: 80.8 m³
C80B 4-Axle Open Wagon Specialized for Coal
Loading Capacity: 80 t
Gauge: 1435 mm
Axle Load: 27 t/axle
Max Speed (Full Load): 100 km/h
Loading Volume: 92 m³
C80E 4-Axle General Open Wagon
Loading Capacity: 80 t
Gauge:1435 mm
Axle Load: 27 t/axle
Max Speed (Full Load): 100 km/h
Loading Volume: 92 m³
