C80E 4-Axle General Open Wagon

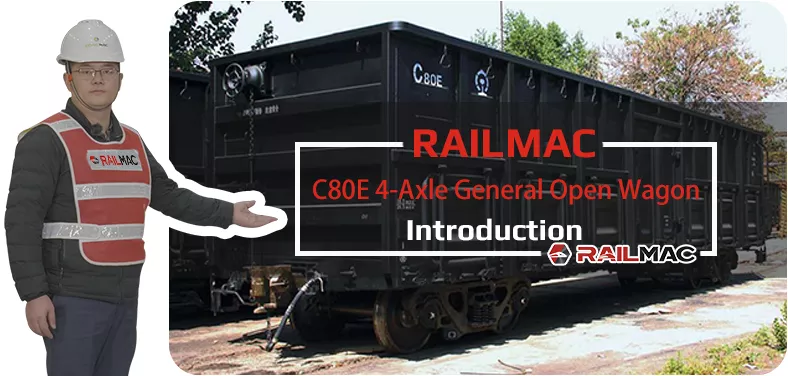

RailMac C80E 4-Axle General Open Wagon

The C80E general-purpose open wagon was modified on the basis of C70E open wagon, increasing the loading capacity to 80 tons.
The bogies adopted on the C80E open wagons are DZ1, DZ2, and DZ3, they have features of low power and quasi radial, which reduce the wheel-rail lateral force and wheel wear. The wearing parts are non-metallic or detachable metal wearing parts, which can be replaced and repaired.
The wagon body mainly adopts S450EW high corrosion resistant weathering steel, S450AW acid resistant high corrosion-resistant steel, or Q450NQR1 high strength weathering steel, which improves the corrosion resistance of the wagon.
As part of SinoMac, RailMac provides full life‑cycle services for the C80E 4-Axle General Open Wagon, including design, system supply, installation, commissioning, after‑sales training, spare parts supply, troubleshooting and overhaul support, ensuring stable and efficient performance throughout its service life.

Advantages of C80E 4-Axle General Open Wagon

With an 80 t loading capacity and 92 m³ loading volume, the C80E delivers class-leading bulk cargo throughput. It maximises single-trip payload, reducing the number of transport cycles required and significantly cutting logistics costs for coal, ore, and aggregates.
A 26.5 t tare weight paired with a high 27 t/axle load rating ensures exceptional strength under continuous heavy loading. The reinforced chassis and body are engineered to withstand the rigours of heavy-haul operations, ensuring long service life and low maintenance costs.
Designed for high-load conditions, it maintains stable running even under full capacity. Its standard 1435 mm gauge and 145 m minimum curve radius ensure smooth navigation across complex track alignments, while the 100 km/h full-load speed balances heavy transport efficiency with safe operation.
As a general open wagon, it handles a wide range of bulk commodities (coal, minerals, construction materials, etc.). Its compact dimensions (3190 mm width/height) ensure compatibility with standard rail clearance limits, making it a flexible and cost-effective solution for diverse bulk freight networks.

Technical Specifications

Trains Model:	C80E 4-Axle General Open Wagon
Loading Capacity:	80 t
Gauge:	1435 mm
Axle Load:	27 t/axle
Max Speed (Full Load):	100 km/h
Loading Volume:	92 m³

coming soon

Model	Loading Capacity	Gauge	Axle Load	Max Speed	Loading Volume
C80E 4-Axle General Open Wagon	80 t	1435 mm	27 t/axle	100 km/h	92 m³
C80B 4-Axle Open Wagon Specialized for Coal	80 t	1435 mm	27 t/axle	100 km/h	92 m³
C70E 4-Axle Open Goods Wagon	70 t	1435 mm	23 t/axle	120 km/h	80.8 m³
C70 4-Axle General-Purpose Open Wagon	70 t	1435 mm	23 t/axle	120 km/h	77 m³
C64K 4-Axle Standard Gauge Bogie Wagon	61 t	1435 mm	21 t/axle	120 km/h	73.3 m³
——END——

Main Parameters
OpenWgon Series	C80E Open Wagon	Bogie	80 t
Wheel diameter	840 mm	Bogie Type	K6/K5
Coupler Center Height	880 mm	Fixed Wheelbase	1830 mm
Carriage Material	Q450N Q R1	Braking Ratio	7.3
Maximum Operating Speed	100 km/h	Railway Gauge	1435 mm
Axle load	24 t	Axis number	4
Coupler Type	17#	Length	13976 mm
Door Opening Size	950 mm×756 mm	Brake Type	Air brake
Braking Distance	≤1400 m	Minimum Radius	145 m
——END——

Q1: Do you have the design capability to provide customized railway vehicles?

A: Yes, we have a professional technical team and are familiar with international railway standards such as UIC, AAR, EN, etc. We are able to provide railway equipment according to customer requirements.

Q2: The Chinese railway gauge is 1435 mm, but the railway gauge in our country is 1000 mm. Will this be a problem for you?

A: Of course not, we are able to design railway vehicles with different gauges, such as 1435 mm, 1000 mm, 1067 mm, 1520 mm or other required railway gauges.

Q3: Compared with your competitors, why should I choose you?

A: Tieke Railway was transformed from China Railway Freight Car Factory in 2016. The company has more than 10 years of experience in railway vehicle manufacturing; now, as Tieke Railway is a private company with modern market management strategies, our services are flexible, considerate, and the cost is more controllable.

Q4: What should I provide to get your quotation?

A: You can send an inquiry with detailed drawings, product photos, detailed technical parameters or demand description. Complete demand input is very important for us to provide you with an accurate quotation.
