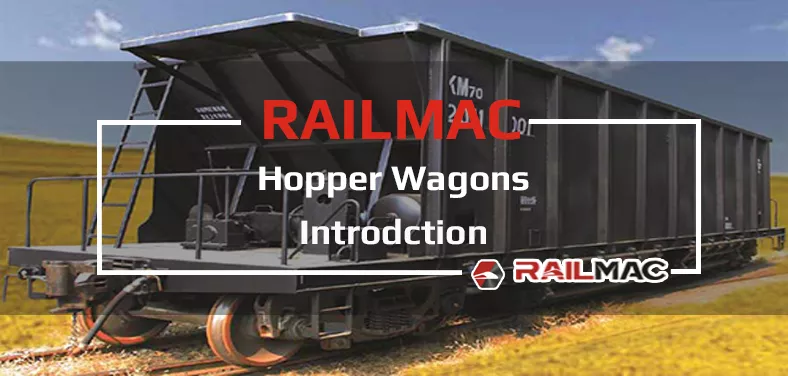

RailMac Hopper Wagons

Hopper wagons are railway freight wagons with sloping inward end walls or arc shape end faces and hoppers at their bottoms. Hopper wagons can be divided into two types according to their structures: covered hoppers and open-top hoppers.
The common feature of all types of hopper wagons is: hopper wagons have opening doors on their sidewalls or at bottoms, and they have funnel-shaped warehouses which allow goods to be unloaded automatically by their own weights.
Hopper wagons are widely used railway wagons for the transportation of bulk powder or granular materials because of their extreme convenience for loading and unloading. Covered hoppers are used for grain, sugar, cement, and other bulk materials that must be protected from exposure to the weather. Open-top hoppers are used for materials that can be exposed to the weather such as coal, limestone, track ballast, etc.

Advantages of Hopper Wagons

1. Multi-point loading through the vehicle roof and gravity-fed unloading via the underbody hopper enable efficient loading/unloading and seamless integration with conveyor belts and silos.
2. Hopper design ensures smoother material flow and minimizes residue.
3. Optional dust cover prevents powdery materials from generating dust or absorbing moisture, while avoiding grain leakage.
4. Multiple models available: Open-top type for coal and ore; high-cover type for grains, chemicals, and other easily contaminated cargo.

Find Hopper Wagons by Series

This is the list of all series of RailMac hopper wagons.
Click here to find hopper wagons by type.

K18AK 4-Axle

K18AK 4-Axle

Loading Capacity: 60 t
Gauge: 1435 mm
Axle Load: 21 t/axle
Max Speed (Full Load): 120 km/h
Loading Volume: 65 m³

KM70 Standard Gauge 4-Axle

KM70 Standard Gauge 4-Axle

Loading Capacity: 70 t
Gauge: 1435 mm
Axle Load: 23 t/axle
Max Speed (Full Load): 120 km/h
Loading Volume: 75 m³

KM80 Standard Gauge

KM80 Standard Gauge

Loading Capacity: 80 t
Gauge:1435 mm
Axle Load: 27 t/axle
Max Speed (Full Load): 120 km/h
Loading Volume: 75 m³

K13NK 60T 4-Axle

K13NK 60T 4-Axle

Loading Capacity: 60 t
Gauge: 1435 mm
Axle Load: 21 t/axle
Max Speed (Full Load): 120 km/h
Loading Volume: 36 m³

KZ70 70T 4-Axle

KZ70 70T 4-Axle

Loading Capacity: 70 t
Gauge: 1435 mm
Axle Load: 23 t/axle
Max Speed (Full Load): 120 km/h
Loading Volume: 42 m³

KZ80 80T 4-Axle

KZ80 80T 4-Axle

Loading Capacity: 80 t
Gauge: 1435 mm
Axle Load: 27 t/axle
Max Speed (Full Load): 120 km/h
Loading Volume: 48 m³

K13BK Limestone Hopper Wagon

K13BK Limestone Hopper Wagon

Loading Capacity: 60 t
Gauge: 1435 mm
Axle Load: 21 t/axle
Max Speed (Full Load): 120 km/h
Loading Volume: 41 m³

K18BK Iron Ore Hopper Wagon

K18BK Iron Ore Hopper Wagon

Loading Capacity: 60 t
Gauge: 1435 mm
Axle Load: 21 t/axle
Max Speed (Full Load): 120 km/h
Loading Volume: 60 m³

6-Axle Grain Hopper

6-Axle Grain Hopper

Loading Capacity: 80 t
Gauge: 1600/1435 mm
Axle Load: 23 t/axle
Max Speed (Full Load): 115 km/h
Loading Volume: 126 m³

L70 Grain Hopper

L70 Grain Hopper

Loading Capacity: 69 t
Gauge: 1435 mm
Axle Load: 23 t/axle
Max Speed (Full Load): 120 km/h
Loading Volume: 98 m³
