1520mm Gauge Grain Hopper Wagon

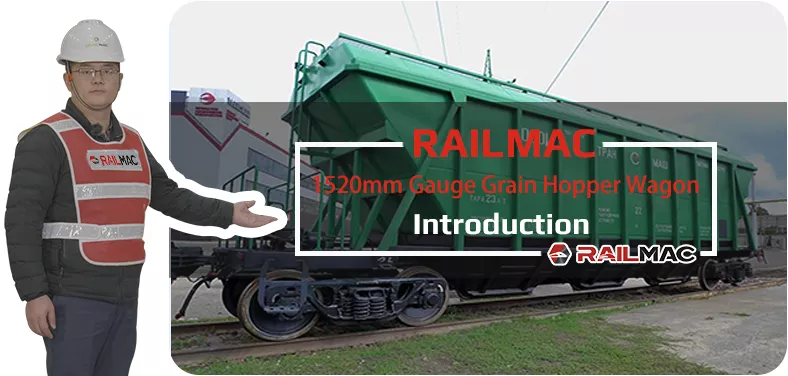

RailMac 1520mm Gauge Grain Hopper Wagon

The 1520mm Gauge Grain Hopper Wagon for Ukraine is a specialized railway vehicle designed for efficient bulk grain transportation, tailored to the 1520mm broad-gauge railway system. With a loading capacity of 70 tonnes and a tare weight of 24 tonnes, it achieves a 25-tonne axle load for stable heavy-duty operation. Boasting a large loading volume of 104 cubic meters, it maximizes single-trip cargo efficiency. Key dimensions include an overall length of 14720mm, maximum width of 3260mm, and empty-load height of 4800mm. It features 4 loading hatches and 6 unloading hatches, with a 350mm height from the unloading hatch to the rail surface, ensuring smooth loading and discharge. The wagon supports a full-load maximum speed of 120 km/h, meeting high-efficiency logistics demands.

As part of SinoMac, RailMac provides full life‑cycle services for the 1520mm Gauge Grain Hopper Wagon, including design, system supply, installation, commissioning, after‑sales training, spare parts supply, troubleshooting and overhaul support, ensuring stable and efficient performance throughout its service life.

Advantages of 1520mm Gauge Grain Hopper Wagon

The 70-tonne loading capacity and 104 m³ volume significantly reduce per-tonne logistics costs and accelerate cargo turnover.
The 4 loading hatches and 6 unloading hatches, paired with a 350mm unloading hatch height, enable fast, automated material handling.
Designed for 1520mm gauge railways, it perfectly fits Ukraine’s rail network, ensuring seamless cross-regional transportation.
A 120 km/h full-load speed enhances long-distance transport efficiency, supporting timely grain supply chains.
The 25-tonne axle load and optimized bogie center distance (10500mm) deliver robust stability and durability for heavy-duty operations.

Technical Specifications

Trains Model:	1520mm Gauge Grain Hopper Wagon
Loading Capacity:	70 t
Gauge:	1520 mm
Axle Load:	25 t/axle
Max Speed (Full Load):	120 km/h
Loading Volume:	104 m³

coming soon

Model	Loading Capacity	Gauge	Axle Load	Max Speed (Full Load)	Loading Volume
1520mm Gauge Grain Hopper Wagon	70 t	1520 mm	25 t/axle	120 km/h	104 m³
KM70G 4-Axle Covered Lime Hopper	74 t	1435 mm	25 t/axle	120 km/h	82 m³
6-Axle Grain Hopper	80 t	1600/1435 mm	23 t/axle	115 km/h	126 m³
KH70 4-Axle Fly Ash Covered Hopper	70 t	1435 mm	25 t/axle	80 km/h	75 m³
KH70B 4-Axle Flexible Roof Covered Hopper	70 t	1435 mm	25 t/axle	80 km/h	75 m³
70t 4-AxleRailway Grain Hopper Wagon	69 t	1435 mm	23 t/axle	120 km/h	98 m³
——END——

Main Parameters
Loading capacity	70 t	Tare weight	24 t
Axle load	25 t/axle	Loading Volume	104 m³
Overall length	14720 mm	Maximum width	3260 mm
Maximum height (empty load)	4800 mm	Gauge	1520 mm
Loading hatch Qty	4	Unloading hatch Qty	6
Height from unloading hatch to rail surface	350 mm	Distance between bogie centers	10500 mm
Distance between coupler centerline & rail surface	1060 ± 20 mm	Max speed (full load)	120 km/h
——END——

Q1: Do you have the design capability to provide customized railway vehicles?

A: Yes, we have a professional technical team and are familiar with international railway standards such as UIC, AAR, EN, etc. We are able to provide railway equipment according to customer requirements.

Q2: The Chinese railway gauge is 1435 mm, but the railway gauge in our country is 1000 mm. Will this be a problem for you?

A: Of course not, we are able to design railway vehicles with different gauges, such as 1435 mm, 1000 mm, 1067 mm, 1520 mm or other required railway gauges.

Q3: Compared with your competitors, why should I choose you?

A: Tieke Railway was transformed from China Railway Freight Car Factory in 2016. The company has more than 10 years of experience in railway vehicle manufacturing; now, as Tieke Railway is a private company with modern market management strategies, our services are flexible, considerate, and the cost is more controllable.

Q4: What should I provide to get your quotation?

A: You can send an inquiry with detailed drawings, product photos, detailed technical parameters or demand description. Complete demand input is very important for us to provide you with an accurate quotation.
