KM70G 4-Axle Covered Lime Hopper

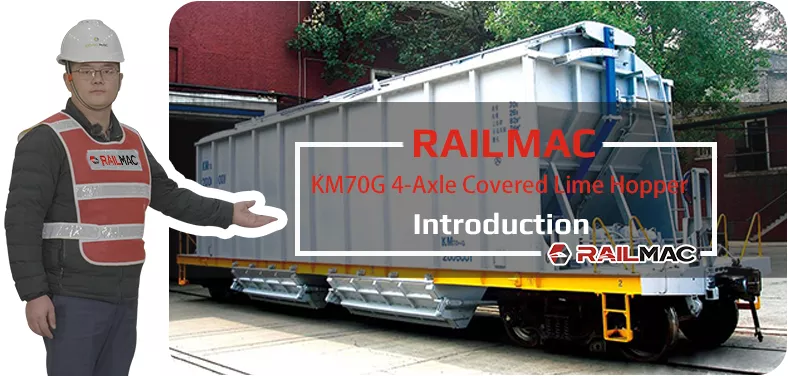

RailMac KM70G 4-Axle Covered Lime Hopper

The KM70G 4-Axle Covered Lime Hopper is a specialized railway wagon engineered for the bulk transportation of powdered lime. With a loading capacity of 74 tonnes and a tare weight of 26 tonnes, it delivers a robust 25-tonne axle load, ensuring stable performance under heavy loads. Boasting a loading volume of 82 cubic meters, this wagon maximizes single-trip transport efficiency. Its overall dimensions (14400mm in length, 3200mm in width, 4230mm in height) are tailored for 1435mm standard gauge railways, while a maximum full-load speed of 120 km/h and a negotiable minimum curve radius of 145 meters enable smooth operation across diverse rail networks.
As part of SinoMac, RailMac provides full life‑cycle services for the KM70G 4-Axle Covered Lime Hopper designed, including design, system supply, installation, commissioning, after‑sales training, spare parts supply, troubleshooting and overhaul support, ensuring stable and efficient performance throughout its service life.

Advantages of KM70G 4-Axle Covered Lime Hopper

The combination of 74-tonne loading capacity and 82 m³ volume significantly cuts per-tonne logistics costs and boosts cargo turnover.
A 120 km/h full-load speed and 145-meter minimum curve radius allow it to adapt to both mainline and complex regional railway conditions.
The 4-axle design and 25-tonne axle load distribution ensure enhanced stability and durability during long-distance transportation.
The covered hopper structure prevents material leakage and dust pollution, aligning with eco-friendly transportation standards.

Technical Specifications

Trains Model:	KM70G 4-Axle Covered Lime Hopper
Loading Capacity:	74 t
Gauge:	1435 mm
Axle Load:	25 t/axle
Max Speed (Full Load):	120 km/h
Loading Volume:	82 m³

coming soon

Model	Loading Capacity	Gauge	Axle Load	Max Speed (Full Load)	Loading Volume
KM70G 4-Axle Covered Lime Hopper	74 t	1435 mm	25 t/axle	120 km/h	82 m³
6-Axle Grain Hopper	80 t	1600/1435 mm	23 t/axle	115 km/h	126 m³
1520mm Gauge Grain Hopper Wagon	70 t	1520 mm	25 t/axle	120 km/h	104 m³
KH70 4-Axle Fly Ash Covered Hopper	70 t	1435 mm	25 t/axle	80 km/h	75 m³
KH70B 4-Axle Flexible Roof Covered Hopper	70 t	1435 mm	25 t/axle	80 km/h	75 m³
70t 4-AxleRailway Grain Hopper Wagon	69 t	1435 mm	23 t/axle	120 km/h	98 m³
——END——

Main Parameters
Loading capacity	74 t	Tare weight	26 t
Axle load	25 t/axle	Loading Volume	82 m³
Overall length	14400 mm	Overall width	3200 mm
Overall height	4230 mm	Gauge	1435 mm
Max speed (full load)	120 km/h	Minimum radius of curvature negotiable	145 m
——END——

Q1: Do you have the design capability to provide customized railway vehicles?

A: Yes, we have a professional technical team and are familiar with international railway standards such as UIC, AAR, EN, etc. We are able to provide railway equipment according to customer requirements.

Q2: The Chinese railway gauge is 1435 mm, but the railway gauge in our country is 1000 mm. Will this be a problem for you?

A: Of course not, we are able to design railway vehicles with different gauges, such as 1435 mm, 1000 mm, 1067 mm, 1520 mm or other required railway gauges.

Q3: Compared with your competitors, why should I choose you?

A: Tieke Railway was transformed from China Railway Freight Car Factory in 2016. The company has more than 10 years of experience in railway vehicle manufacturing; now, as Tieke Railway is a private company with modern market management strategies, our services are flexible, considerate, and the cost is more controllable.

Q4: What should I provide to get your quotation?

A: You can send an inquiry with detailed drawings, product photos, detailed technical parameters or demand description. Complete demand input is very important for us to provide you with an accurate quotation.
