K18AK 4-Axle

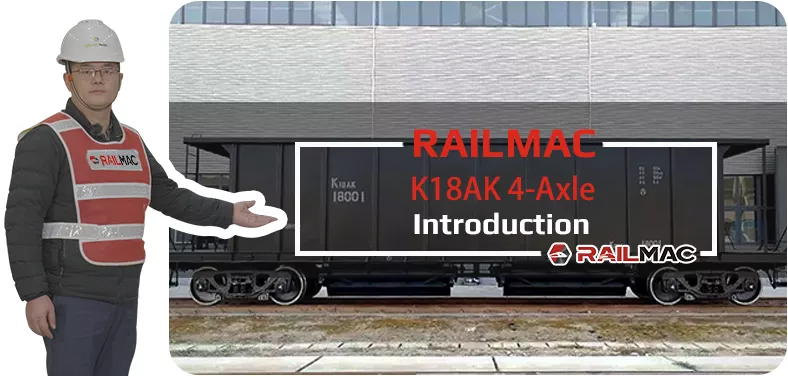

RailMac K18AK 4-Axle

The K18AK 4-axle open coal hopper wagon, a mature model developed by CRRC Taiyuan, completed vehicle dynamics tests in January 2003 and entered mass production, serving as a reliable solution for bulk material transportation.
Featuring a sturdy 4-axle bogie structure, it boasts high structural strength, stable running performance, and strong adaptability to diverse railway lines. Though an earlier-generation model compared with the advanced KM70 and KM80 series, it fully meets the demands for small-to-medium batch transportation of coal, ore, and other bulk goods, supporting both pneumatic and manual unloading for efficient operation in mines, power plants, logistics yards, and port terminals.
As part of SinoMac, RailMac offers comprehensive rail equipment solutions and full life-cycle services, including R&D design, power system supply, installation & commissioning, after-sales training, spare parts supply, and technical support. We ensure the K18AK wagon maintains high reliability, stable efficiency, and long service life throughout its operating cycle.

Advantages of K18AK 4-Axle

Adopting the K2-type bogie with bolster and side frames made of B-grade steel, it delivers strong structural rigidity and load-bearing capacity, ensuring stable operation under heavy loads and harsh working conditions.
Equipped with LZ50 steel axles (4-axle design) and high-strength wheelsets (HDSA rolled steel or HDZC cast steel wheels), this wagon features excellent wear resistance and fatigue performance, extending service life and reducing maintenance costs.
The wagon body is divided into four hopper areas by transverse and longitudinal ridges, which are welded with 5mm steel plates and ribs. This design optimizes material flow, prevents residue accumulation, and improves unloading efficiency.
With a bottom door length of 2700 mm and an opening diameter of 520 mm, it enables fast, uniform discharge of bulk materials, enhancing operational efficiency while ensuring reliable sealing during transportation.

Technical Specifications

Trains Model:	K18AK 4-Axle
Loading Capacity:	60 t
Gauge:	1435 mm
Axle Load:	21 t/axle
Max Speed (Full Load):	120 km/h
Loading Volume:	65 m³

coming soon

Model	Loading Capacity	Gauge	Axle Load	Max Speed Full Load	Loading Volume
K18AK 4-Axle	60 t	1435 mm	21 t/axle	120 km/h	65 m³
KM70 Standard Gauge 4-Axle	70 t	1435 mm	23 t/axle	120 km/h	75 m³
KM80 Standard Gauge	80 t	1435 mm	27 t/axle	120 km/h	75 m³
——END——

Main Parameters
Hopper Car Series:	K18AK Coal Hopper Car	Railway Gauge:	1435 mm
Load:	60 t	Tare:	22 t
Wheel Diameter:	840 mm	Number of Axes:	4
Bogie Type:	K2	Coupler Type:	13#
Coupler Center Height:	880 mm	Length:	14730 mm
Fixed Wheelbase:	1750 mm	Loading Method:	Upper load, two sidespneumatic tippingunloading
Bottom Door Length:	2700 mm	Bottom Door Opening:	520 mm
Tilt Degree:	45°	Funnel material:	Q450N Q R1
Braking Distance:	≤1400 m	Brake Type:	Air brake
Maximum Operating Speed:	120 km/h	Minimum Radius:	145m
——END——

Q1: Do you have the design capability to provide customized railway vehicles?

A: Yes, we have a professional technical team and are familiar with international railway standards such as UIC, AAR, EN, etc. We are able to provide railway equipment according to customer requirements.

Q2: The Chinese railway gauge is 1435 mm, but the railway gauge in our country is 1000 mm. Will this be a problem for you?

A: Of course not, we are able to design railway vehicles with different gauges, such as 1435 mm, 1000 mm, 1067 mm, 1520 mm or other required railway gauges.

Q3: Compared with your competitors, why should I choose you?

A: Tieke Railway was transformed from China Railway Freight Car Factory in 2016. The company has more than 10 years of experience in railway vehicle manufacturing; now, as Tieke Railway is a private company with modern market management strategies, our services are flexible, considerate, and the cost is more controllable.

Q4: What should I provide to get your quotation?

A: You can send an inquiry with detailed drawings, product photos, detailed technical parameters or demand description. Complete demand input is very important for us to provide you with an accurate quotation.
